Roller Guides delivering performance, ride quality and exceptional value
Trusted for over 70 years to deliver high quality products that can dramatically reduce noise and vibration in the elevator.
ELSCO offers a complete line of elevator roller guides and swivel slide guides to meet the most demanding performance standards in the industry.
Calibre C-150
The C-150 is a three-wheel roller guide with spring suspension, adjustable stops in all directions, and three 150 mm diameter polyurethane rollers.
Combining ease of installation and hoistway adjustability, the C-150 is designed for rail sizes commonly found in Europe, accommodating rails from 9mm (T82) to 19mm (T140-1).
It provides a smooth ride on a wide range of elevator cars up to 3.0 m/s and 1,800 kg capacity in low- to mid-rise buildings.
Engineered and tested to meet EN81, the C-150 is constructed from durable, precision machined, ductile iron castings and is assembled using quality parts to ensure the installed roller guide delivers a lifetime of reliable performance.
Calibre C-80
The Calibre C-80 is a three-wheel roller guide with spring suspension, adjustable stops in all directions, and three 80 mm diameter polyurethane roller wheels.
Combining ease of installation and hoistway adjustability, the C-80 roller guide is compatible with a wide range of elevator counterweight, car and guide rail sizes.
Designed for counterweights up to 3.0 m/s and 1,800 kg capacity and elevator cars up to 1.5 m/s and 1,100 kgs capacity in low- to mid-rise buildings.
Engineered and tested to meet EN 81 standards, the Calibre C-80 is constructed from durable, precision machined, ductile iron castings and is assembled using quality parts to ensure the installed roller guide delivers a lifetime of reliable performance.

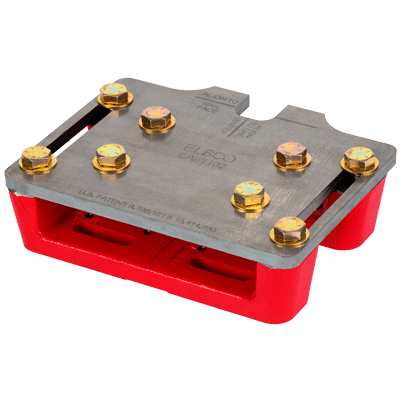

Flex-Mount™
Flex-Mount™ is an innovative, patented hardware kit designed specifically to allow ELSCO roller guides to mount on a range of pre-existing bolt patterns, without the need to take accurate measurements, create drawings, and fabricate custom adapter plates.
Flex-Mount™ adapter plates have also been designed to comply with EN81 regulations, and when installed correctly, deliver safety and peace of mind.
Seismic Flex-Mount™ adapter plates meet application requirements in seismic zones 2, 3, or greater.
